3-1/8 x 5000psi FC Type Hydraulic Slab Gate Valve-Valve Stock

Home >>Products>>Wellhead Valves >>FC Hydraulic Gate Valve >>3-1/8 x 5000psi

3-1/8 x 5000psi FC Type Hydraulic Slab Gate Valve

Specification

Size :3-1/8
Pressure :5000 PSI
Material :4130	WEIGHT (KGS) :212
Equal OEM :Cooper Cameron	OEM P/N :TBA

Description


The valve is available with an optional manual closing
and locking screw.
The adjusting nut in the bind cylinder head absorbs the
overload or test pressures applied to the opening side of
the valve, protecting the stem from overload.
The cylinder ports are located a sufficient distance from
the cylinder head to allow the piston tocover the exhaust
port before the end of the stroke this arrangment provides
enough damping to protect the from shock loading.
The overload or test pressures applied to the closing side
of the cylinder are absorbed when the piston bottoms out
against the packing gland of the stem.
The tail rod and the operating stem have backseating
shoulders which allow replacement of the stem packing
while the valve is under pressure.

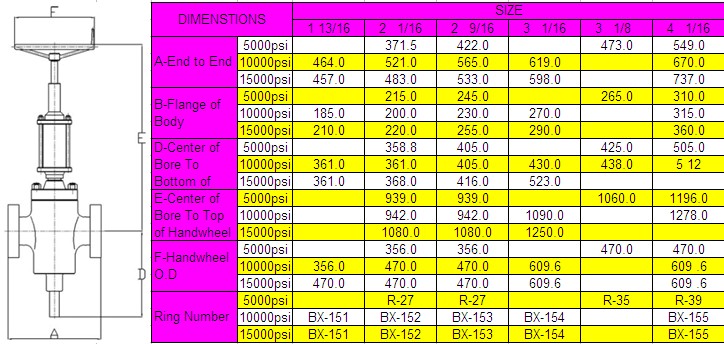

Product Drawings:
