7-1/16 X 2000psi Flange End Expanding Gate Valve-Valve Stock

Home >>Products>>Wellhead Valves >>WKM Expanding Gate Valve >>7-1/16 X 2000psi Flange End

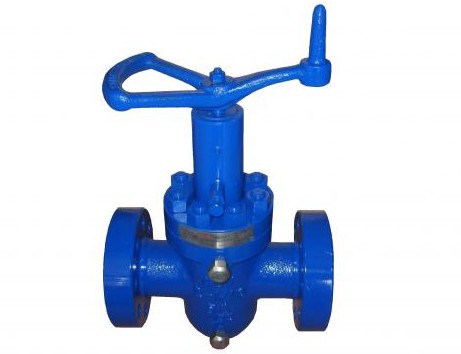

7-1/16 X 2000psi Flange End Expanding Gate Valve

Specification

Size :7-1/16
Pressure :2000 PSI
Material :4130	WEIGHT (KGS) :TBA
Equal OEM :Cooper Cameron	OEM P/N :TBA

Description


Sizes :     2" ~ 7-1/16"
Pressure:  2000psi ~ 15000 psi
Connections :  Threaded or Flanged
Expanding wedge gate design, non-rising Stem and metal-to-metal sealing .
Trims available for all types of oilfield service,
Field replaceable parts
Continuous full bore /thru conduit flow at sealing surfaces minimizes pressure drop and eliminates turbulence.
Valve body cavity is filled with grease to allow easier operation, corrosion resistance and longer life. Two safety-capped grease fittings are provided on the body so that grease may be added at any time.
The TFE ring in the seat assures an initial seal between seats and gate in addition to the metal-to metal seal generated by the full expansion of the gate.
External grease fitting allows easy lubrication of stem  bearings .
Valve does not rely on line pressure for sealing


Product Drawings:
